Aluminum Center Sections

Ford 9", 40 Spline, Lightweight Steel Spool

Typically used in TA/D and Pro Modified Cars. For 3.812" bore case (57448 or 57448-95S is required). Uses 1/2" bolts. Manufactured from through hardened 4140 high strength steel, black oxide coated. 10 lbs.

Pinion Support Bearing Kit for Use with 28 Spline Pinion Shaft

Kit for N1922 / N2322 supports using 28 spline pinion ApplicationStrange pinion supports N1922 / N2322Using a 28 spline pinion shaft Using a 35 spline pinion shaft? – See N1924 Kit IncludesTimken® front pinion bearing – N1930Adjustable pinion preload...

Tapered Bearing Pinion Support, Fits 9" Ford Center Sections Used for Drag Racing

Tapered Bearing Pinion Support, Fits 9" Ford Center Sections Used for Drag Racing ApplicationDrag Race Use Only For Street or Street & Strip – See N1917P FeaturesForged 2024-T351 aluminum bodyClear anodized finishMachined for oversized racesAbility to...

Ball Bearing Pinion Support, Fits 9" Ford Center Sections Used For Drag Racing

Strange Ball Bearing Pinion Support, Includes Bearings & Seal For 35 Spline Pinion, Fits 9″ Ford Center Sections Used For Drag Racing ApplicationDrag Race Use Only FeaturesForged 2024-T351 aluminum bodyClear anodized finishMachined for front tapered race...

Load Bolt Assembly for Strange Ultra Case & HD Pro Aluminum Case

ApplicationStrange Ultra Case and HD Pro Case BenefitThe load bolt offers additional support during extreme conditions such as tire shakeThe steel tip is initially adjusted very close to the backside of the ring gearIf deflection occurs, it provides...

Pro Series HD Aluminum Spool, Fits Ford 9" with 40 Spline Axles

Pro spool -Aluminum 40 spline Ford 9″ (3.812″ bore case ) ApplicationFord 9″ DescriptionHD Pro Series SpoolFor 40 spline axlesFits 3.812″ bore aftermarket case Features• Machined from 7075-T6 billet aluminum• Lightened to reduce rotating weight• Bearing...

Pro Series HD Lightweight Steel Spool, Fits Ford 9" with 40 Spline Axles

Pro spool -L/W Steel 40 spline Ford 9″ (3.812″ bore case) ApplicationFord 9″ DescriptionHD Pro Series SpoolFor 40 spline axlesFits 3.812″ bore aftermarket case Features• Machined from 8620 forged steel• Lightened to reduce rotating weight• Bearing...

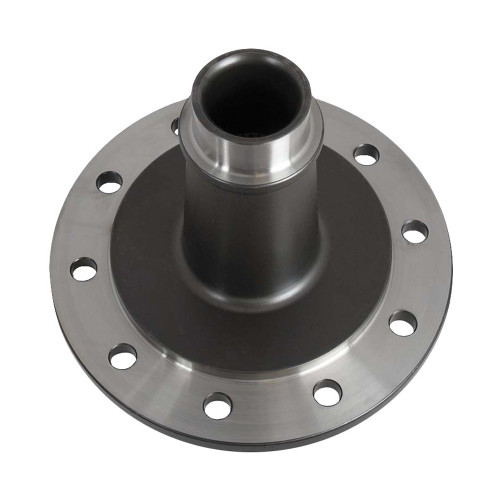

S-Series Steel Spool for Ford 9" with 35 Spline Axles

ApplicationFord 9″ DescriptionS-Series SpoolFor 35 spline axlesFits 3.250" bore case Features• Manufactured from 8620 forged steel• Broached for 35 spline axles with 30° pressure angle• Same spline locations as OEM differential• Final turn operation...

S-Series Steel Spool for Ford 9" with 31 Spline Axles

ApplicationFord 9″ DescriptionS-Series SpoolFor 31 spline axlesFits 2.891″ or 3.062″ bore case Features• Manufactured from 8620 forged steel• Broached for Ford 31 spline axles• Same spline locations as OEM differential• Final turn operation after heat...

Aluminum Ultra Case Assembly, HD 40 Spline Lightweight Steel Spool, 28 Spline Pro Gear & Female Coupler

3.812″ Ultra Case assembly / HD 40 spline spool / 28 spline Pro gear / female coupler Includes:N1912Strange 3.812″ Bore Ultra Case206-T4 heat treated aluminum caseBillet aluminum main capsSolid steel adjuster nuts N1950ABillet Aluminum Tapered Bearing...

Aluminum Ultra Case Assembly, HD 40 Spline Lightweight Steel Spool, 35 Spline Pro Gear & Female Coupler

3.812″ Ultra Case assembly / HD 40 spline spool / 35 spline Pro gear / female coupler Includes:N1912Strange 3.812″ Bore Ultra Case206-T4 heat treated aluminum caseBillet aluminum main capsSolid steel adjuster nuts N1950ABillet Aluminum Tapered Bearing...

Aluminum Ultra Case Assembly, HD 40 Spline Lightweight Steel Spool, 28 Spline Pro Gear & Chrome Moly Yoke

3.812″ Ultra Case assembly / HD 40 spline spool / 28 spline Pro gear / yoke Includes:N1912Strange 3.812″ Bore Ultra Case206-T4 Heat Treated Aluminum CaseBillet Aluminum Main CapsSolid Steel Adjuster Nuts N1950ABillet Aluminum Tapered Bearing Pinion...
